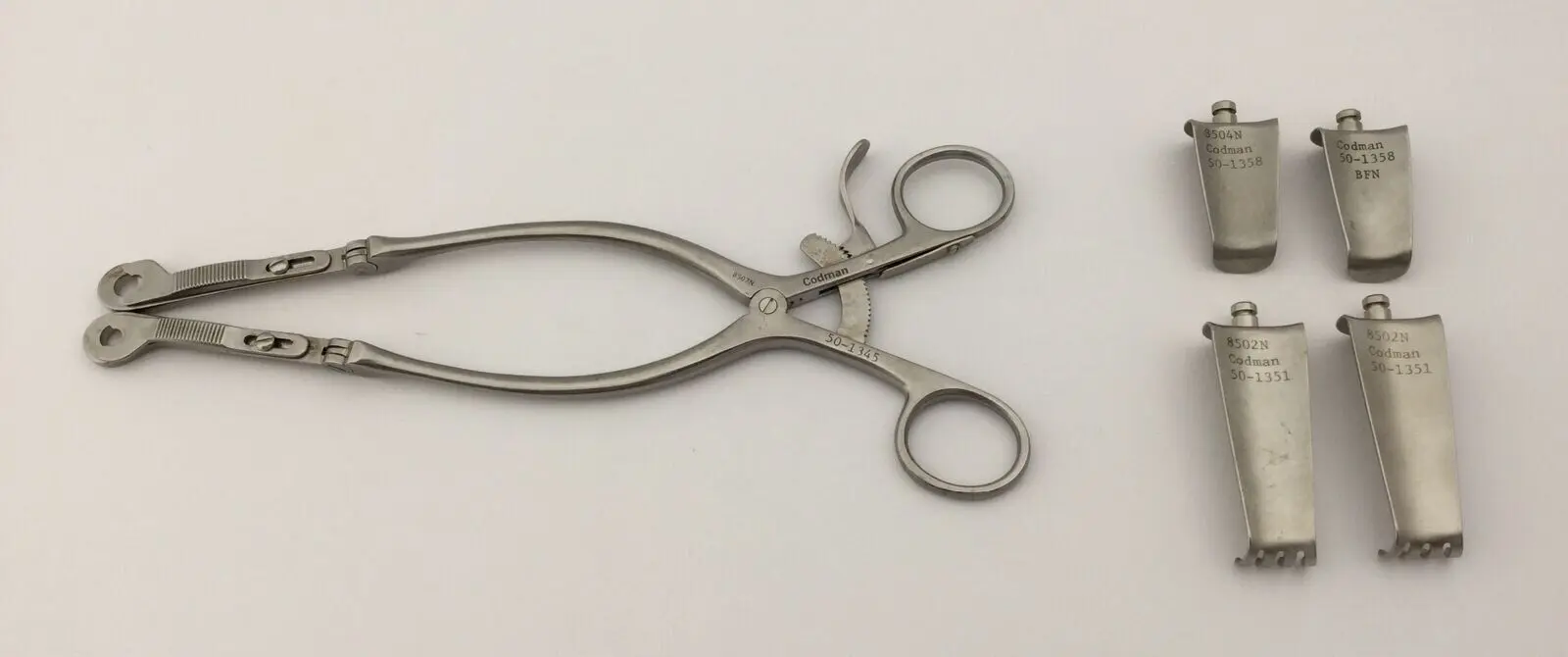

Codman 50-1345 Cloward Large Cervical Retractor with 50-1351 & 50-1358 Blades
Codman Cloward Large Cervical Retractor Set | Model 50-1345 Master Frame | Includes 50-1351 and 50-1358 Retraction Blades | Self-Retaining Spread Lock Mechanism | Reusable Capital Neurosurgical and Anterior Cervical Spine Dissection Element | Pre-Owned Hospital Surgery Asset (1/EA)
The Codman 50-1345 Cloward Large Cervical Retractor is a professional-grade self-retaining instrument assembly expertly engineered to maintain wide, stable exposure of the soft tissue corridors during anterior cervical discectomy and fusion (ACDF) procedures. This comprehensive spinal retraction system features a heavy-duty mechanical frame equipped with an adjustable spread-locking mechanism that holds the incision open hands-free under significant muscular tension. This specific asset is configured with the Codman 50-1351 and 50-1358 specialized side blades, providing the neurosurgeon with variable depth parameters to safely retract the esophagus, trachea, and carotid sheath without inducing localized tissue ischemia.
Technical Specifications
Master Frame (Codman 50-1345)
-
Instrument Structural Typology: Cloward-Pattern Self-Retaining Spine Retractor
-
Retractor Frame Total Length: 10.0 Inches overall profile (25.4 cm structural footprint)
-
Maximum Spreading Width Capacity: 5-1/2 Inches max open expansion range (14.0 cm aperture)
-
Retraction Mechanism Class: Hinged mechanical arms with manual knurled thumb-screw spread lock
-
Primary Surgical Approach: Anterior Cervical Discectomy and Fusion (ACDF) exposure layout
-
Blade Coupling Mechanism: Quick-connect slide-lock attachment pins on the main frame arms
Retraction Blades (Codman 50-1351 & 50-1358)
-
Blade Model 50-1351 Profile: Interlocking prong structure, typical depth calibration
-
Blade Model 50-1358 Profile: Blunt/Atraumatic soft-tissue protective face, variable deep reach line
-
Structural Blade Connection Type: Side-loading hook channel designed to secure seamlessly over frame pins
-
Material Composition Matrix: Premium, passivated high-impact surgical stainless steel with a non-glare satin finish
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Codman Cloward Large Cervical Retractor Set | Model 50-1345 Master Frame | Includes 50-1351 and 50-1358 Retraction Blades | Self-Retaining Spread Lock Mechanism | Reusable Capital Neurosurgical and Anterior Cervical Spine Dissection Element | Pre-Owned Hospital Surgery Asset (1/EA)
The Codman 50-1345 Cloward Large Cervical Retractor is a professional-grade self-retaining instrument assembly expertly engineered to maintain wide, stable exposure of the soft tissue corridors during anterior cervical discectomy and fusion (ACDF) procedures. This comprehensive spinal retraction system features a heavy-duty mechanical frame equipped with an adjustable spread-locking mechanism that holds the incision open hands-free under significant muscular tension. This specific asset is configured with the Codman 50-1351 and 50-1358 specialized side blades, providing the neurosurgeon with variable depth parameters to safely retract the esophagus, trachea, and carotid sheath without inducing localized tissue ischemia.
Technical Specifications
Master Frame (Codman 50-1345)
-
Instrument Structural Typology: Cloward-Pattern Self-Retaining Spine Retractor
-
Retractor Frame Total Length: 10.0 Inches overall profile (25.4 cm structural footprint)
-
Maximum Spreading Width Capacity: 5-1/2 Inches max open expansion range (14.0 cm aperture)
-
Retraction Mechanism Class: Hinged mechanical arms with manual knurled thumb-screw spread lock
-
Primary Surgical Approach: Anterior Cervical Discectomy and Fusion (ACDF) exposure layout
-
Blade Coupling Mechanism: Quick-connect slide-lock attachment pins on the main frame arms
Retraction Blades (Codman 50-1351 & 50-1358)
-
Blade Model 50-1351 Profile: Interlocking prong structure, typical depth calibration
-
Blade Model 50-1358 Profile: Blunt/Atraumatic soft-tissue protective face, variable deep reach line
-
Structural Blade Connection Type: Side-loading hook channel designed to secure seamlessly over frame pins
-
Material Composition Matrix: Premium, passivated high-impact surgical stainless steel with a non-glare satin finish
