IMI Norgren Miniature Compressed Air Regulator and Integrated Switch Assembly Kit | Model R07-200-RGEA | 1/4 Inch PTF Main Inlet and Outlet Ports | 5 to 50 PSI Control Pressure Range | Relieving Diaphragm Design with Integrated Front Face Round Dial Gauge | Designed for SMR Specialist Diagnostic Carts and ENT Clinical Treatment Towers | Brand New Open Box Hospital Supply Component (1/KIT)

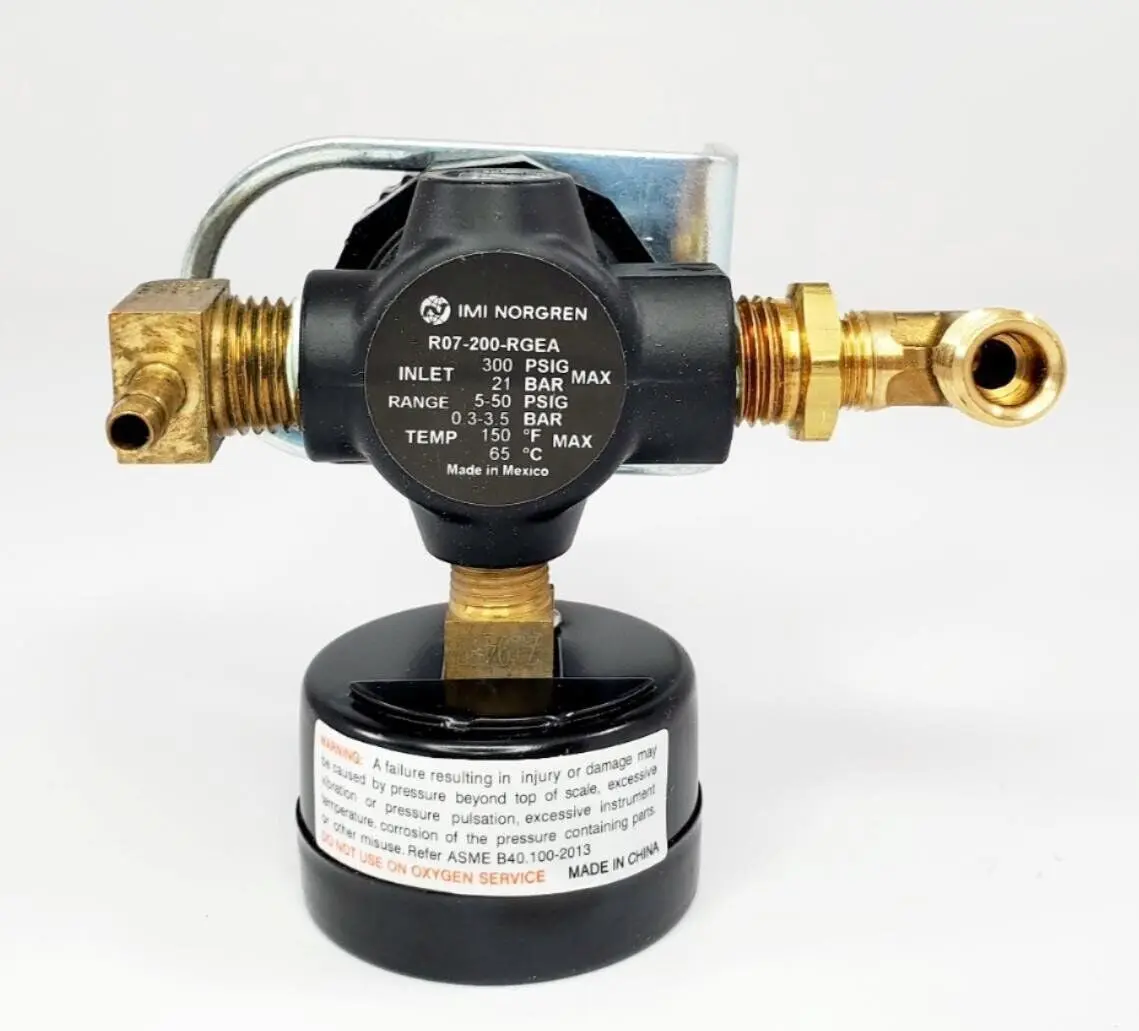

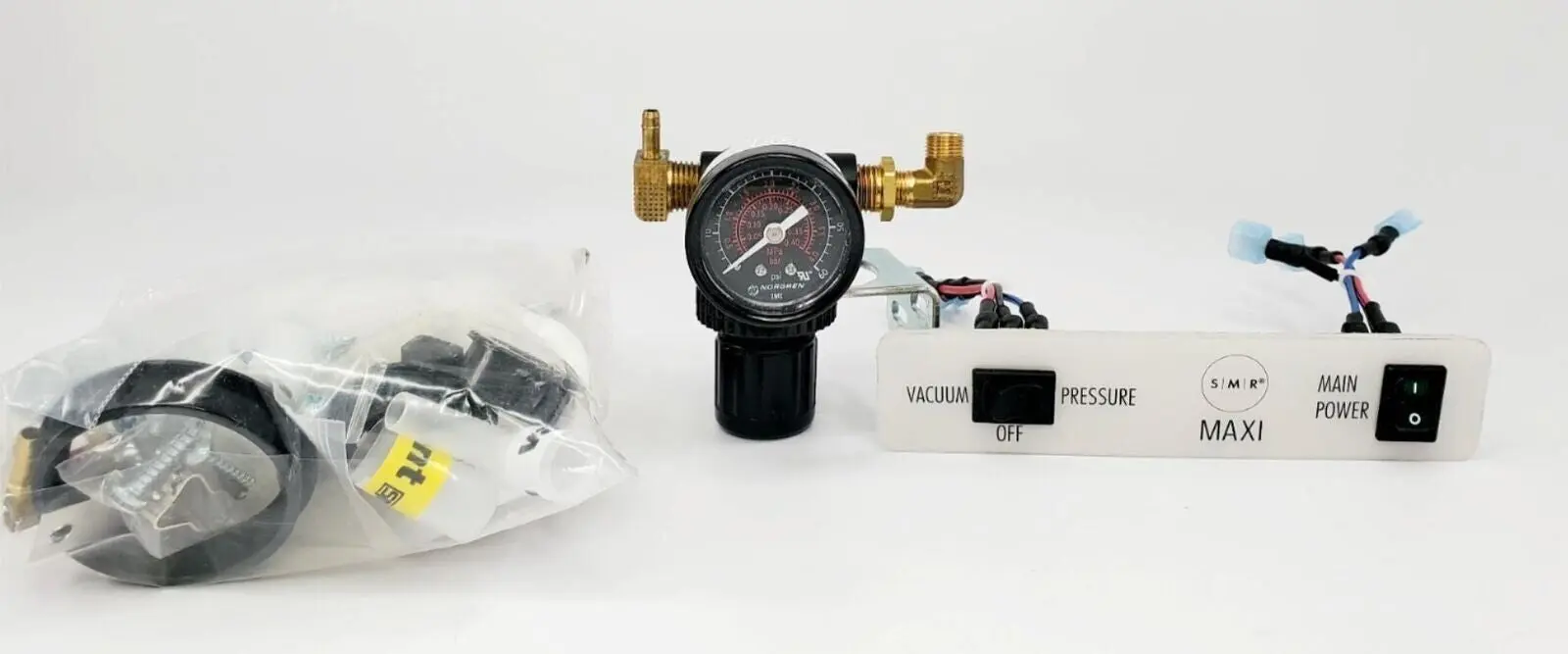

The IMI Norgren R07-200-RGEA is a professional-grade, hospital-level pneumatic control element expertly engineered to regulate, monitor, and deliver clean compressed air or medical-grade gas within specialized surgical workstation networks. Configured as a fully integrated kit featuring a dedicated miniature regulator, calibrated pressure dial gauge, and micro-switch assembly, this system component is specifically tailored for high-accuracy deployment on SMR (SMR Corporation) clinical carts and Otolaryngology (ENT) treatment towers. The miniature 07-Series architecture incorporates 1/4 inch PTF female threaded port lines to fit standard hospital cart supply lines. To shield downstream diagnostic tools from structural over-pressurization, the device uses a rapid-response relieving diaphragm substrate that naturally vents built-in backpressure when adjusted downstream. Built with a low-torque, non-rising acetal adjusting knob equipped with a push-to-lock snap-action engagement ring, this brand-new open-box kit serves as a precise clinical engineering asset optimized for immediate, error-free integration into facility equipment registers and automated tracking software.
Technical Specifications
-
Manufacturer: IMI Norgren (Norgren Corporation / Mexico)
-
Product Brand Family: 07-Series Miniature General Purpose Air Preparation Portfolio
-
Product Catalog Code (MPN): R07-200-RGEA (Cross-referenced across diagnostic parts lines as R07200RGEA)
-
Core System Assembly Application: Direct fit component replacement kit for SMR Treatment Carts and ENT Surgical Tower lines
-
Flow Medium Compatibility: Clean compressed air, inert gases, or medical diagnostic utility air lines
-
Main Inlet and Outlet Port Sizing: 1/4 Inch PTF Female Threaded Connections (Provides standard 15 SCFM or 7 dm3/s volume ratings)
-
Gauge Port Connection Interface: Dedicated 1/8 Inch Rc/PTF back-mount layout
-

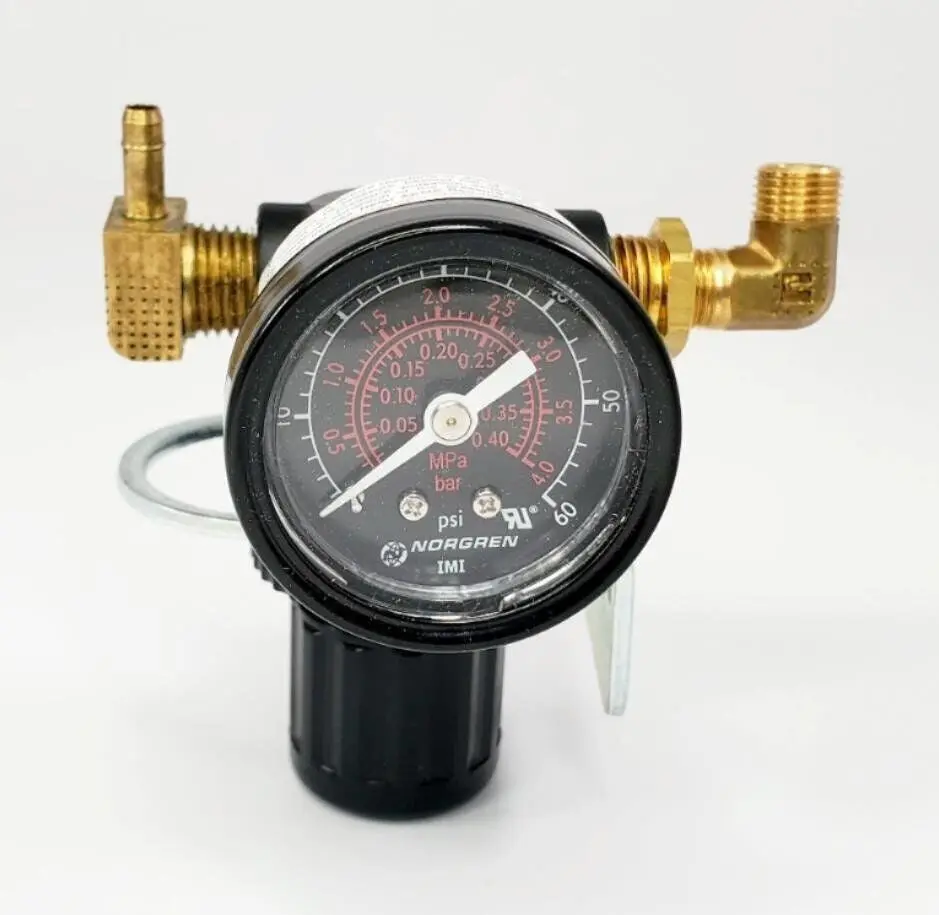

Integrated Gauge Indication Range: Double-scaled face indicating 0 to 60 PSI, 0 to 4.0 Bar, and 0 to 0.40 MPa
-
Downstream Pressure Regulation Adjustment Scope: 5 to 50 PSI (0.3 to 3.5 Bar) nominal control track
-
Maximum Structural Safe Inlet Pressure: 290 PSI (20 Bar) maximum system threshold
-
Diaphragm Mechanics Class: Internal Relieving configuration matrix
-
Primary Material Construction Base: Corrosion-resistant die-cast Zinc alloy body with an injection-molded Acetal bonnet cap
-
Internal Elastomer Substrates: High-integrity Nitrile Rubber (NBR) sealing seats
-
System Adjustment Mechanism: Non-rising manual adjustment knob featuring a mechanical push-to-lock snap collar
-
Operational Temperature Tracking Parameters: -29 to 149 degrees Fahrenheit (-34 to 65 degrees Celsius) thermal limits
-
Total Component Physical Profile: 84 mm Height x 105 mm Length x 73 mm Width (0.25 kg mass rating)
