OrthoScan FD 1000-0004-FD Mini C-Arm Imaging System

OrthoScan FD Mini C-Arm | HD Flat Detector | Model 1000-0004-FD

90 Day Warranty

The OrthoScan FD (Model 1000-0004-FD) is a premier mobile imaging platform engineered for 2026 standards in orthopedic extremity surgery. Manufactured in 2018, this system delivers high-resolution 1K x 1K HD imaging through a dual-mode flat detector, providing the sharp diagnostic clarity required for intricate hand, foot, and ankle procedures.

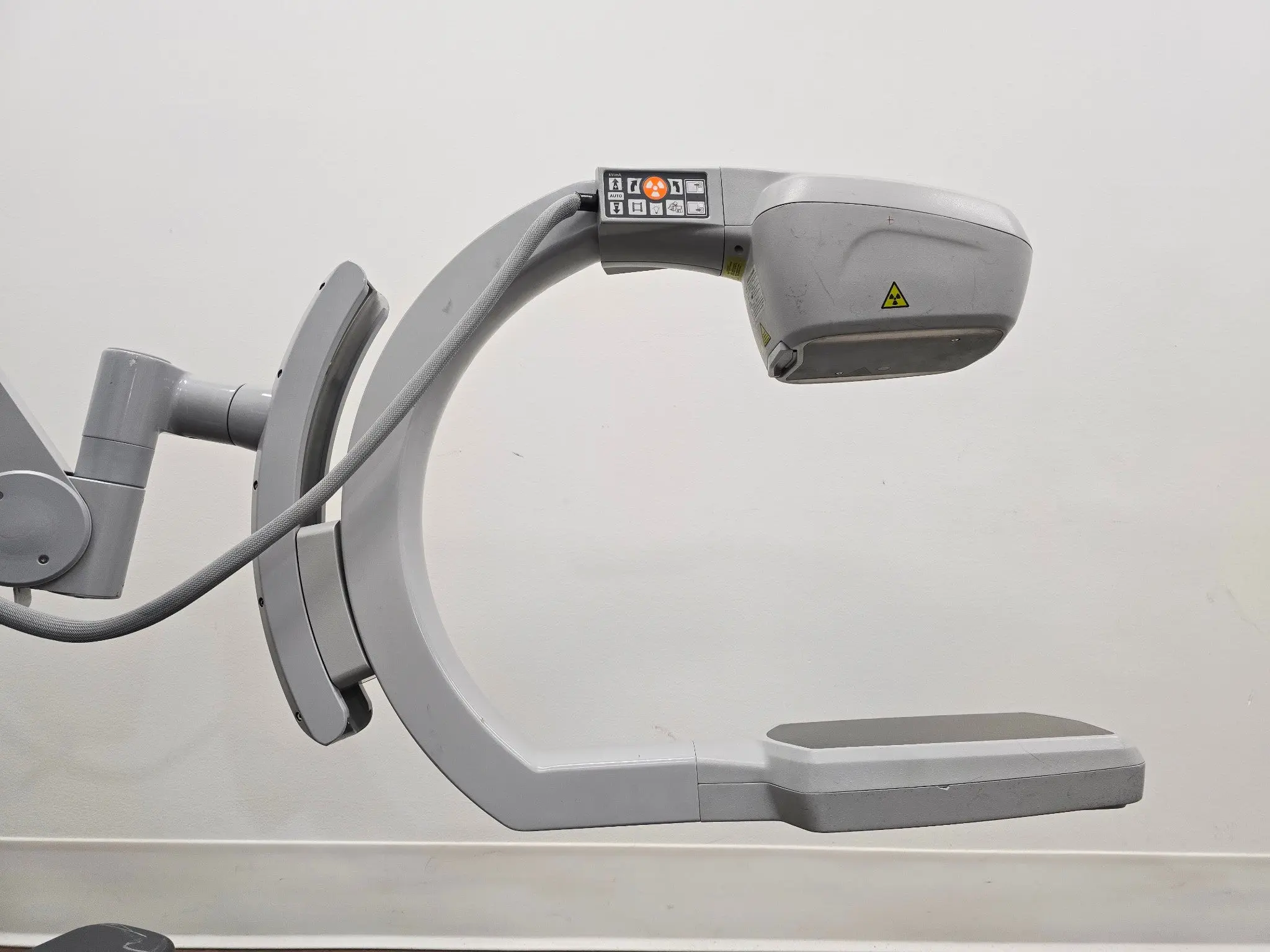

Designed with a surgeon-centric philosophy, the FD model offers a generous 13.8" free space and 18.2" arc depth, ensuring that the C-arm never interferes with the surgical field. Its ultra-compact footprint and versatile rotation make it the gold standard for outpatient surgery centers (ASCs) and private orthopedic practices.

Key System Specifications

• Manufacturer: OrthoScan, Inc.

• Model: FD (Flat Detector) 1000-0004-FD

• Manufacture Date: 2018-05-21

• Serial Number: 5J1304

• Software Version: 1.5.1467 (API v1.0.5)

• Detector Type: 6"/4" Dual-Mode High-Definition

• Imaging Resolution: 1K x 1K HD

• Internal Storage: Up to 8,000 images (DICOM 3.0 compliant)

• Rotation: 380° Pivot / 320° Lateral rotation

Technical & Clinical Advantages

• Superior Surgical Access: The increased arc depth (18.2") and free space (13.8") allow for easier positioning around large extremity draping and surgical assistants, reducing "re-positioning" time during active procedures.

• High-Definition Flat Detector: Unlike traditional image intensifiers, the FD technology provides consistent, edge-to-edge clarity without the geometric distortion ("vignetting") common in older models.

• Digital Integration: Fully DICOM 3.0 compatible, allowing for seamless transfer of studies to Hospital RIS/PACS systems. The built-in Sony Digital Graphic Printer provides immediate hard-copy documentation for patient charts.

• Extreme Maneuverability: The lightweight mobile base and extensive pivot range allow the unit to be maneuvered into tight exam rooms or crowded operating theaters with minimal physical effort.

• Intuitive Workstation: Features an integrated LCD Monitor (Model C24WT), keyboard tray, and multi-function foot pedal for hands-free operation during sterile procedures.

Included Components

• Integrated Image/Detector Assembly

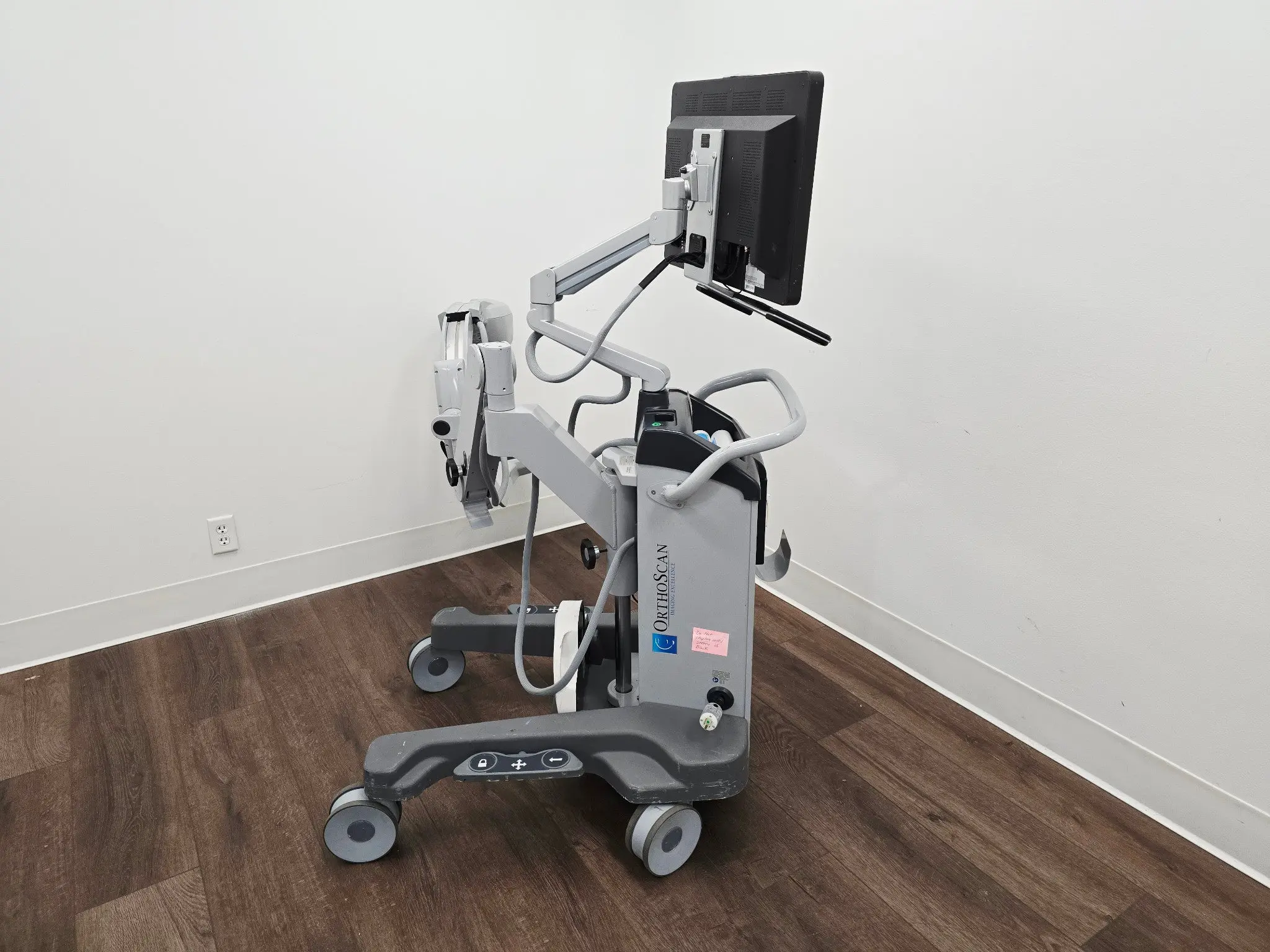

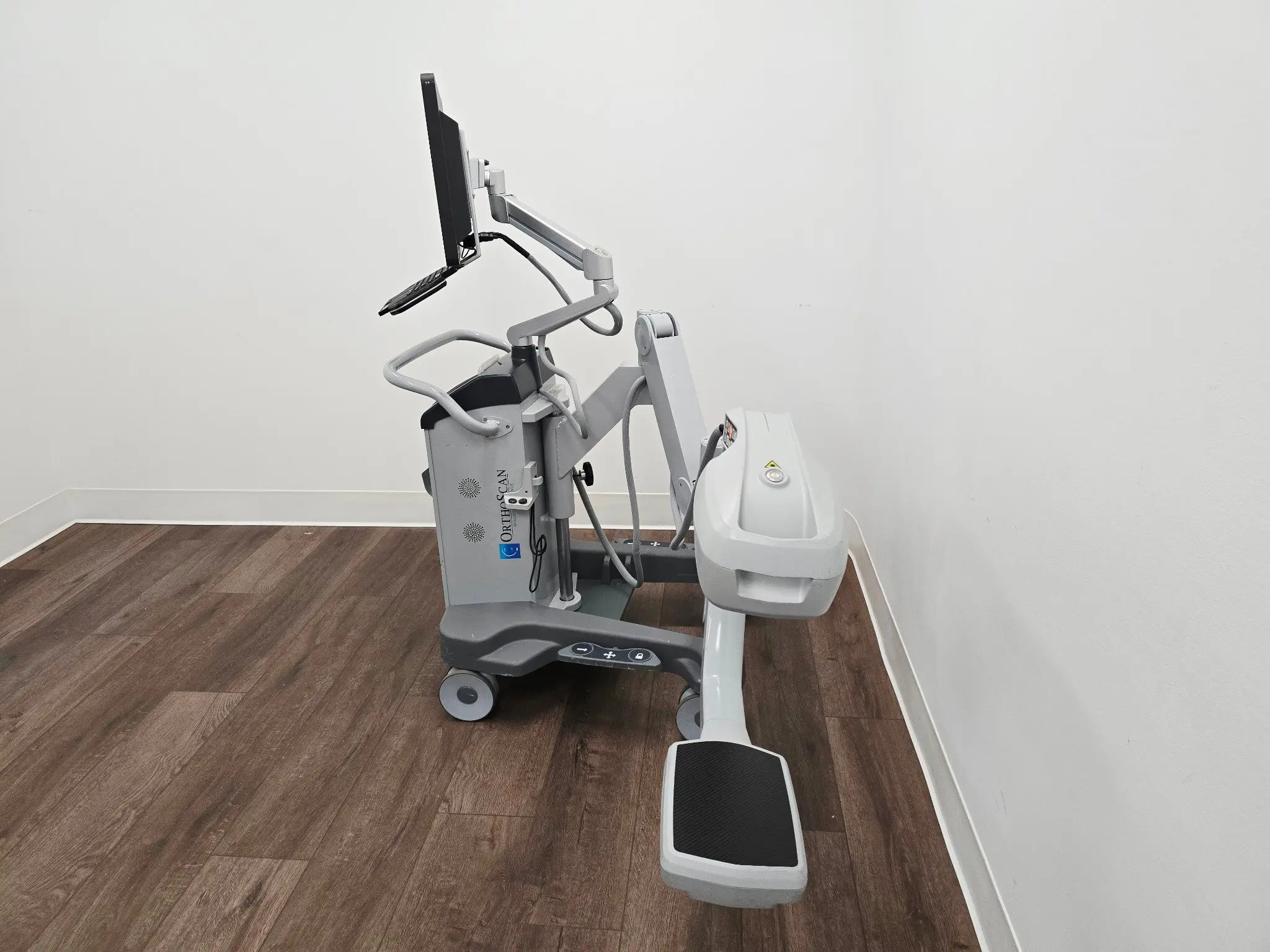

• OrthoScan Mobile Workstation Base

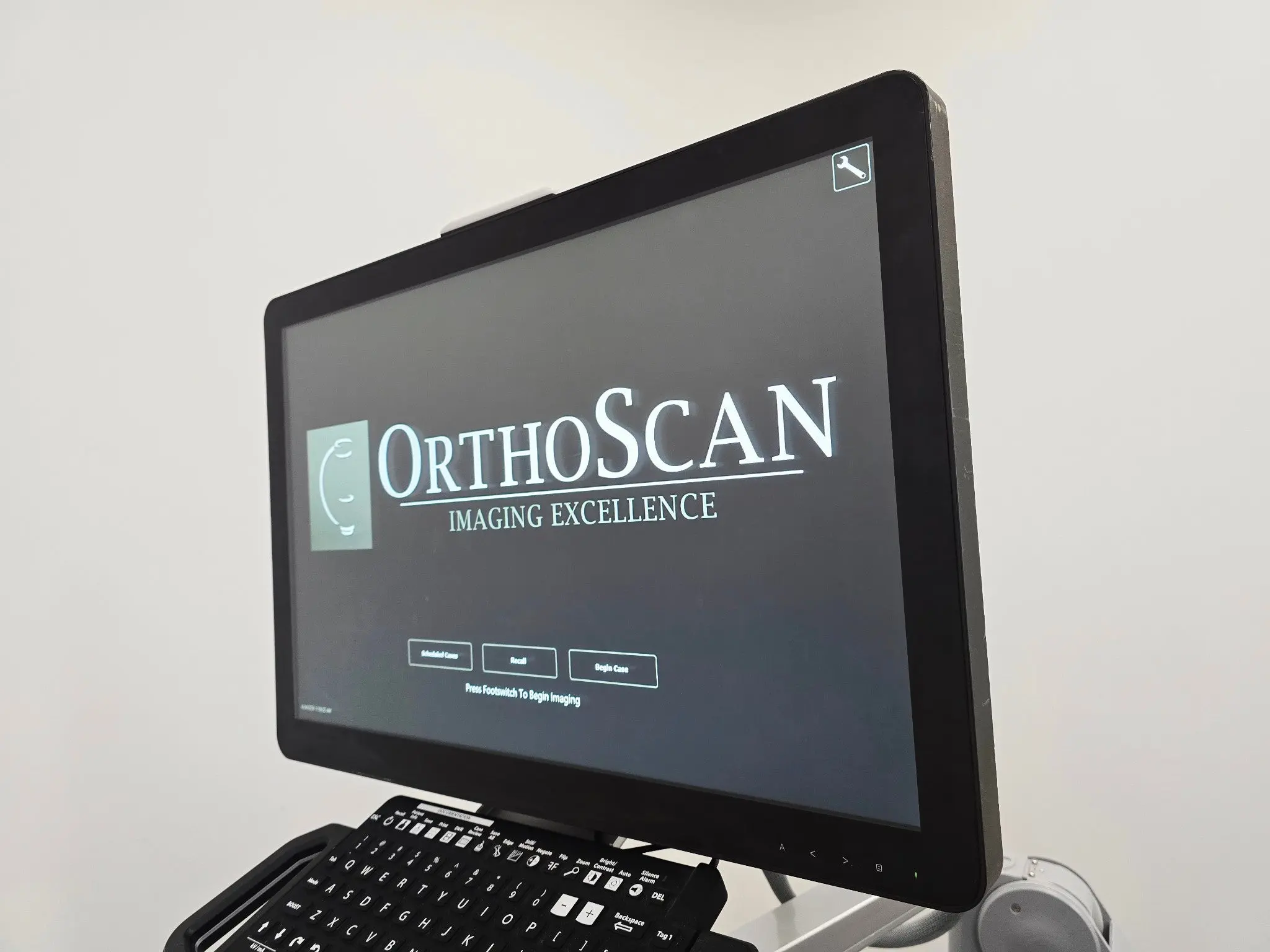

• LCD Monitor (Model C24WT)

• Multi-Function Foot Pedal

• Keyboard & Workstation Tray

• Built-in Sony Digital Graphic Printer

• Attached system cables and power leads

Condition & Quality Assurance

• Status: Pre-owned / Operational.

• Functional Assessment: The system successfully powers on and loads the user interface (v1.5.1467). All embedded software and API versions have been verified as active.

• Aesthetic Condition: Shows normal signs of clinical use, including surface scuffs and handling marks on the housing. The C-arm movement and pivot joints are smooth and mechanically sound.

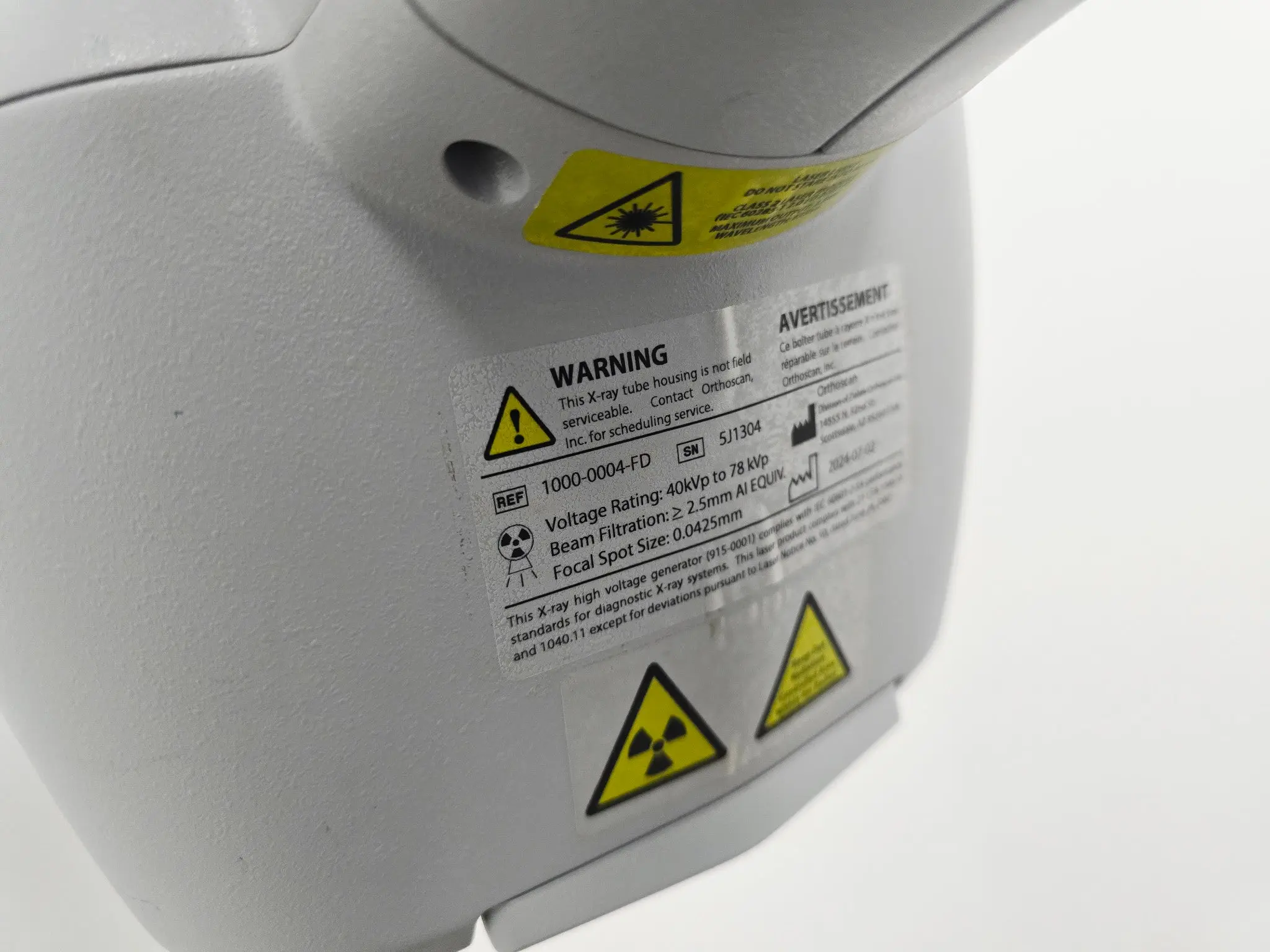

• Compliance: Clearly labeled "For Examination of Extremities Only."

Logistics & Installation

• Support: This unit is ideal for facility installation, clinical evaluation, or as a robust parts-support unit for existing OrthoScan fleets.

• Secure Shipping: This unit requires specialized medical freight handling to preserve the alignment of the detector and X-ray tube.
